Serial1-Wire interface
TEMP05, the serial box behind early 1-Wire weather logging
TEMP05 was the first 1-Wire interface kit from Midon Design. It sat between a Dallas Semiconductor 1-Wire bus and a PC serial port, reading a weather station and a string of thermometers and printing the results as plain text. Production ended on June 30, 2003, when the TEMP08 took its place.
- Host linkRS232, 9600 bps
- DevicesUp to 60
- Report interval1 to 99 minutes
- Production endedJune 30, 2003
First published April 5, 2002 · Text rewritten 2026

What the TEMP05 was built to do
The TEMP05 began life as a serial logging interface. Its job was to take care of the 1-Wire bus so the host computer did not have to: the board polled the sensors, handled the tight timing the bus requires and sent finished readings out of an RS232 port. The first target was narrow. It read the Dallas Semiconductor 1-Wire Weather Station plus up to 20 additional DS18S20 thermometers, which was enough for an outdoor station and a thermometer in most rooms of a house.
Firmware updates widened that scope considerably. Later versions read several 1-Wire rain gauges, barometers and humidity sensors alongside the weather station and thermometers, with a ceiling of 60 devices in total. A single report interval, adjustable in one-minute steps from 1 to 99 minutes, controlled how often a full set of readings went out of the serial port. Temperatures could be reported in Celsius or Fahrenheit. Wind speed was only ever reported in miles per hour with the firmware of the time.
Midon Design stopped producing the TEMP05 on June 30, 2003. Its successor, the TEMP08 1-Wire serial interface, kept the same idea of a smart serial bridge and also handles up to 60 sensors over RS232. The TEMP05 documentation remained online for owners of existing boards, and the most common owner questions are collected on the TEMP05 frequently asked questions page.
Devices the TEMP05 could read
The board accepted any mix of the devices below on one bus. Only a single weather station was allowed, while the other types could appear several times up to the overall device limit.
| Device | Type | Typical use |
|---|---|---|
| AAG or Dallas 1-Wire Weather Station | Station (one only) | Wind speed, wind direction, outdoor temperature |
| DS18S20, DS1820, DS1920 | Temperature | Room, attic and outdoor thermometers |
| DS18B20, DS1822 | Temperature | Newer thermometers (firmware V4.21 and later) |
| DS2405, DS2406, DS2407 | Switch | Contact inputs or simple outputs |
| DS2401 | Serial ID | Presence and identification |
| DS2423 | Counter | Rain gauge, lightning detector, general counting |
| DS2438 | Battery monitor with A/D | Humidity sensor, barometer, voltage monitor |
A board with no sensors at all was also a valid setup: the TEMP05 could simply drive the companion RELAY05 relay board from serial commands. The chip families in this table are described in more depth on the 1-Wire sensors page.
Wiring, power and the serial link
Sensor wiring

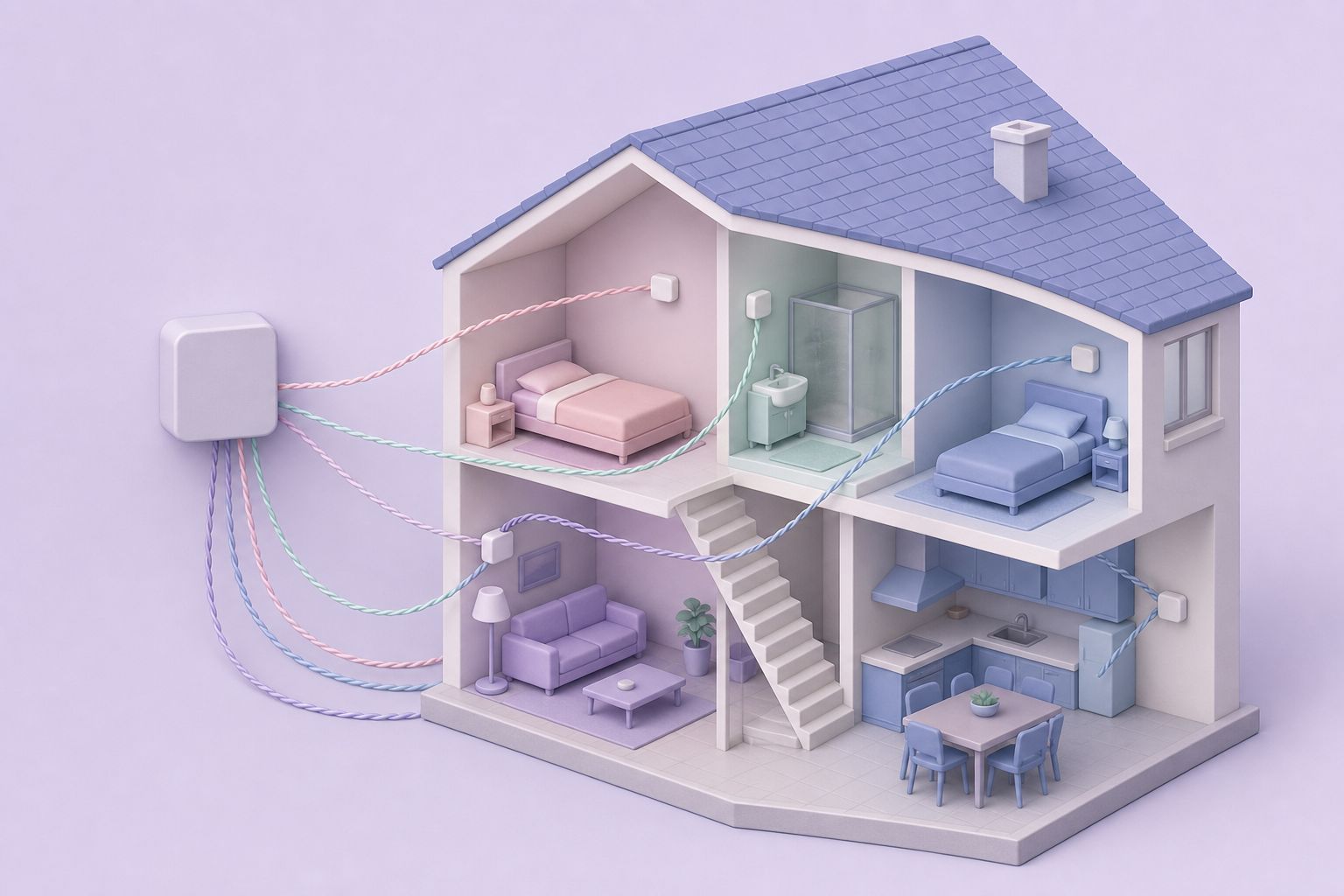

Sensors connected to terminal J2 over twisted pair cable, normally CAT-5 or better. Two layouts worked. In a home run layout every sensor had its own cable back to the board and all the ends were joined there. In a daisy chain one or more cable runs left the board and each sensor was tapped into the run where it was needed. With good CAT-5, sensors could sit up to 300 ft from the board. When a sensor ran on parasitic power, both outer pins of the DS18S20 had to be tied to ground for reliable readings. One DS18S20 was already mounted on the board itself, which covered the room the TEMP05 lived in.
Power
Almost any wall adapter would do. Without a relay board the requirement was at least 9 V (AC or DC) and at least 100 mA. With a RELAY05 attached, the adapter had to supply 12 to 15 V with at least 800 mA available.
Serial settings
A straight-through serial cable (not a null modem cable) connected the board to the PC. The port ran at 9600 bps, eight data bits, no parity, one stop bit and no flow control. Any terminal program could watch the output or send configuration commands, and the board was also tested successfully behind a USB-to-serial adapter.

What is on the schematic
The TEMP05 board was small enough to read at a glance. A Motorola 68HC705C8 microcontroller ran the firmware from a 4.0 MHz crystal, and a 93C66 serial EEPROM gave it non-volatile storage. An LM78L05 regulator produced the 5 V logic supply after a full-wave bridge rectifier, so the input could be AC or DC of either polarity. A single DS18S20 thermometer came with the kit.
The serial side used a MAX233 RS232 interface, the Maxim part with built-in charge pumps that needs no external capacitors. The parts list allowed a MAX232 instead, which does the same job with four extra 10 µF capacitors; that is why it counted five of them when a MAX232 was fitted. The port itself was a PC-mount DB-9 female connector, wired for a straight-through cable. The rest of the parts list was passives and connectors: a 1.5 kΩ resistor, a 10 MΩ resistor, a nine-way 10 kΩ SIP resistor network, a status LED and two PC-mount terminal strips.
Reading the output stream
Everything the TEMP05 reported arrived as human-readable lines, which made it easy to parse from a script. A polling cycle started with a short banner and was followed by one line per device. Each line carried a device label and number, the 64-bit address of the sensor in square brackets and the value: a percentage for humidity, inches of mercury for the barometer, a compass point such as WNW for wind direction, miles per hour and gust speed for wind, a running count for the lightning counter and degrees for each thermometer.
The address is useful for more than bookkeeping. Printed the way the TEMP05 showed it, the family code sits at the right-hand end: 10 for a DS18S20, 28 for a DS18B20, 26 for a DS2438 and 1D for a DS2423 counter. That makes it possible to tell from the output alone which kind of chip produced a reading.
The board also reported changes on the bus as they happened. A sensor that stopped answering produced a Missing line with its address, and a Restore line appeared when it came back. Switch devices produced On and Off lines when their state changed. A reading that could not be trusted was shown as three question marks rather than a number, which is the first clue when a sensor, a splice or a cable leg has failed.
Relays and home automation
An optional connector, J3, extended the board to a relay interface. The firmware could switch up to eight relays through that extension. Midon Design offered a matching kit, the RELAY05 relay board, and the interface was simple enough that builders could wire their own relay stage instead.
The best-known pairing was with HomeSeer, the home automation package from HomeSeer Technologies. Using HomeSeer's built-in scripting, logged temperatures, wind speed and wind direction were written to disk and pushed to a web page in real time. The same scripts could react to thresholds, for example raising an alarm or sending an e-mail when an attic got too hot. HomeSeer was never a requirement, though. Any program that reads a serial port could collect the data, and a sample logging script for HomeSeer was part of the kit documentation.
Today the same kind of setup is usually built with a USB 1-Wire adapter and software such as OWFS, the Linux w1 kernel driver or the Home Assistant 1-Wire integration, which read the same sensor chips directly.
Weather stations that worked with it
Dallas Semiconductor eventually discontinued its 1-Wire Weather Station, but a station was never needed to use the rest of the TEMP05. Tecnologia Aplicada (AAG) made a compatible station, and Midon Design fully supported the AAG Version 3 model. Texas Weather Instruments shipped an equivalent product as well.
The station versions differ in how wind direction is sensed. The Version 1 unit from Dallas and the electrically equivalent Version 2 from AAG used DS2401-based direction sensing. AAG's Version 3 replaced that with a DS2450-based design. TEMP05 firmware V4 read all three versions, while V5.00 and later dropped support for Version 1. The 1-Wire weather station guide covers how these stations are built and read.
Further reading: OWFS, the 1-Wire file system · Linux kernel documentation: 1-Wire subsystem
Questions and answers
What replaced the TEMP05?
The TEMP08 replaced it after TEMP05 production ended on June 30, 2003. The TEMP08 keeps the same role as a serial bridge between a 1-Wire bus and a PC, handling the bus timing on board and reporting readings over RS232. It supports up to 60 sensors, the same ceiling that late TEMP05 firmware reached.
Did the TEMP05 need a weather station to be useful?
No. The weather station was the original reason the board existed, but TEMP05 worked with DS18S20 thermometers alone or with any mix of supported 1-Wire devices. It could even run with no sensors at all, acting only as a serial driver for the RELAY05 relay board, which switched up to eight relays on command.
How often did the TEMP05 report readings?
The report interval was set in one-minute steps anywhere from 1 to 99 minutes. At each interval the board polled every registered device and sent a full block of readings through the serial port. Temperatures could be sent in Celsius or Fahrenheit, while wind speed was reported in miles per hour only.
How far could sensors be placed from the board?
With good quality CAT-5 cable, sensors could be installed up to 300 ft away from the TEMP05. Both home run and daisy chain wiring worked. Where a star layout caused unreliable readings, adding a 100 ohm resistor in series with the data line of each leg was the documented fix for reflections on the bus.
What serial settings did the TEMP05 use?
The board communicated at 9600 bps with eight data bits, no parity, one stop bit and no flow control. Flow control had to be turned off in the terminal program or nothing useful appeared. A straight-through serial cable was required rather than a null modem cable, and a USB-to-serial adapter also worked.
